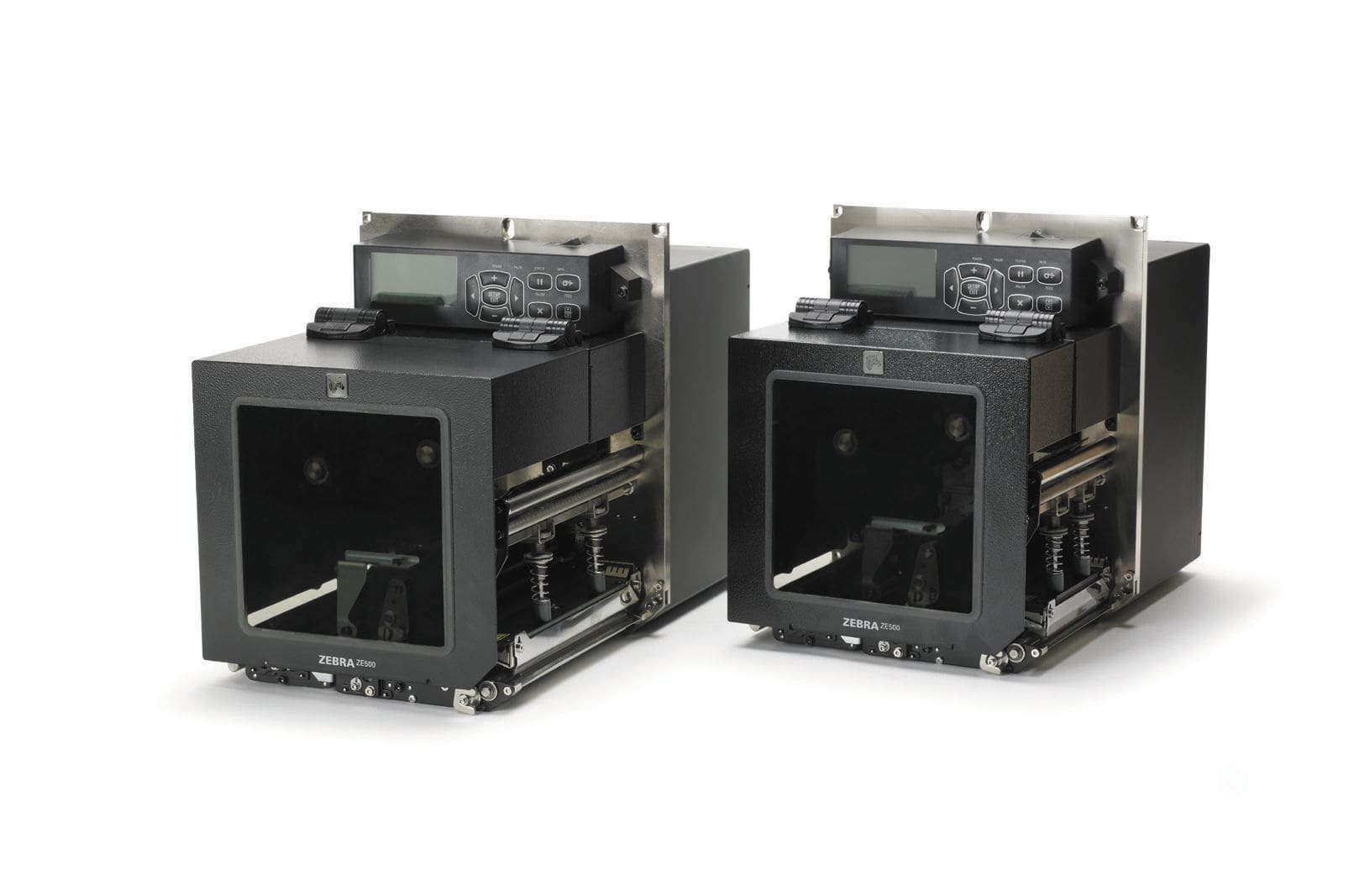

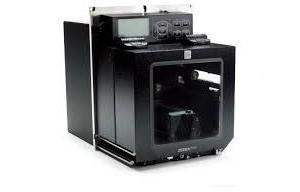

ZEBRA ZE500R
ZEBRA ZE500R
Performance leaders in mission-critical RFID printing applications, these reliable print engines with RFID technology empower you with an integrated solution for identifying packages, cases and pallets. The ZE500R embeds a fully integrated ThingMagic RFID Reader/Encoder and supports the ability to print and encode short pitch item level tags, chip based serialization and block permalocking of user memory.
Technical Features |
|
| Printing Method | thermal transfer or direct thermal |
| Max Printing Speed | Saniyede 12”/305 mm (203 and 300 dpi) |
| Printing Width | 104 mm(maks.) |
| RAM | 16 MB SDRAM |
| ROM | 64 MB Flash |
Ribbon Features |
|
| Min Ribbon Width | 25.4 mm |
| Max Ribbon Width | 107 mm |
| Ribbon Length | : 1,968’/600 m |
Label Features |
|
| DT Max Label Width | ZE500-4: 0.0053”/0.135 mm to 0.010”/0.254 mm ZE500-6: 0.003”/0.076 mm to 0.012”/0.305 mm |
| TT Min Label Width | 16mm |
| TT Max Label Width | 114mm |
| Label Type | Continuous, die-cut or black mark |
Connection Interface |
|
| Rs 232 | Var |
| USB | USB 2.0 |
Notification Features |
|
Environmental and Electrical Features |
|
| Operating Temperature | 31º F/0º C to 104º F/40º C |
| Storage Temperature | -40º F/-40º C to 160º F/71º C |
| Humidity | 20% to 95% |
Additional Features |
|
| RFID | UHF EPC Gen 2 ile uyumlu etiketleri destekler V1.2 / ISO 18000-6C Kısa adım öğe seviye etiketlerini basar ve kodlar Desteklemek için değişken RFID güç ayarları En geniş etiket yelpazesi |
Software Features |
|
Physical Features |
|
| Width | ZE500-4:245mm,ZE500-6:245mm |
| Height | ZE500-4:300mm,ZE500-6:300mm |
| Depth | ZE500-4:379mm,ZE500-6:438mm |
| Weight | ZE500-4:15.4kg,ZE500-6:17.3kg |
